Reducer

HDPE accessory which enables the reduction of the outflow pipe diameter. It adapts to the Solflo and Solflo Max range.

  • Durable and lightweight
  • Easy to handle and install
  • Ensures a high-performing and resistant assembly

Available models:

  • Plain end: Reducer without coupling
  • C: Soil tight (snap bell) Reducer*
  • CGI: Watertight Reducer

*Improved accessorie: injected external reducer with clips, 150 mm t0 100 mm (6 in to 4 in) offers with new bell with universal interior connection!

This new accessory – 1R0064 – will gradually replace the 33RED0604C.





Model shown: 33RED1204



Find a
point of sale
Find an
expert
Reducer

Diameters and Codes

  • 150 mm x 100 mm (6 in x 4 in) – 33RED0604
  • 150 mm x 100 mm (6 in x 4 in) – 1R0064 improved  (replaces 33RED0604C)
  • 200 mm x 100 mm (8 in x 4 in) – 33RED0804
  • 200 mm x 150 mm (8 in x 6 in) – 33RED0806
  • 250 mm x 100 mm (10 in x 4 in) – 33RED1004
  • 250 mm x 150 mm (10 in x 6 in) – 33RED1006
  • 250 mm x 200 mm (10 in x 8 in) – 33RED1008
  • 300 mm x 150 mm (12 in x 6 in) – 33RED1206
  • 300 mm x 200 mm (12 in x 8 in) – 33RED1208
  • 300 mm x 250 mm (12 in x 10 in) – 33RED1210
  • 375 mm x 300 mm (15 in x 12 in) – 33RED1512
  • 450 mm x 300 mm (18 in x 12 in) – 33RED1812
  • 450 mm x 375 mm (18 in x 15 in) – 33RED1815
  • 600 mm x 300 mm (24 in x 12 in) – 33RED2412
  • 600 mm x 450 mm (24 in x 18 in) – 33RED2418
  • 750 mm x 525 mm (30 in x 21 in) – 33RED3021
  • 750 mm x 600 mm (30 in x 24 in) – 33RED3024
  • 900 mm x 600 mm (36 in x 24 in) – 33RED3624
  • 900 mm x 750 mm (36 in x 30 in) – 33RED3630
  • 1 050 mm x 600 mm (42 in x 24 in) – 33RED4224
  • 1 200 mm x 300 mm (48 in x 12 in) – 33RED4812
  • 1 200 mm x 900 mm (48 in x 36 in) – 33RED4836

Technical Documents

Data Sheet

Data Sheet - Reducer

Fabrication Form

Fabrication Form – Standard/custom-made reducer

Note: Technical drawings are available upon request.

our complementary products

External Reducer

External Reducer

HDPE accessory with external connection with clips, which offers dimensional accuracy. This is […]
Reducer Tee

Reducer Tee

HDPE accessory that enables to split a main line to a secondary […]
Wye (Y) Reducer 45

Wye (Y) Reducer 45

Drainage accessory, designed from injection molded resin factory, used for a 45 […]

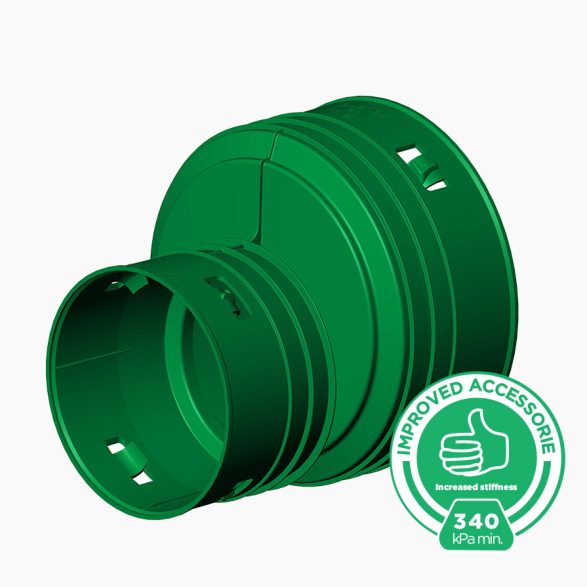

Improved Accessory!

New injected external reducer with clips, 150 mm to 100 mm (6 in to 4 in)

  • Injected HDPE accessory with external connection with clips, which offers higher dimensional accuracy.
  • The new clips permanently lock the accessory on the drainage pipe.
  • The bell with universal interior connection, patent-pending, allows greater restraint, and a good flow section.
  • Provides a minimum stiffness of 340 kPa to meet the criterias of BNQ 3624-110, 3624-115 and 3624-120 standards, as well as CSA B182.8 and AASHTO M252.

Will gradually replace the soil tight (snap bell) reducer, 33RED0604C.

*Improved model of 150 mm to 100 mm (6 in to 4 in) – 1R0064 – only.



Now fits all types of pipes due to a universal connection!

Discover this new improved accessory
