TripleFlo

TripleFlo, made of high-density polyethylene (HDPE), stands out favorably from PVC pipes due to its cost and reduced environmental footprint.
It is offered with 3 different perforation options as well as a non-perforated variant, meeting a variety of needs.
Composed of three interconnected layers of high density polyethylene (HDPE), the TripleFlo has been specifically designed to offer an exceptional level of rigidity in addition to being resistant to corrosion, abrasion, de-icing salts and vibration.
The triple wall pipe is available in 10′ (3m) lengths with a nominal diameter 4in (100 mm) SDR or DR s and is compatible with 4in (100 mm) PVC SDR or DR pipes
Consistent with PVC outer diameter per ASTM D2729 / CSA 182.1.

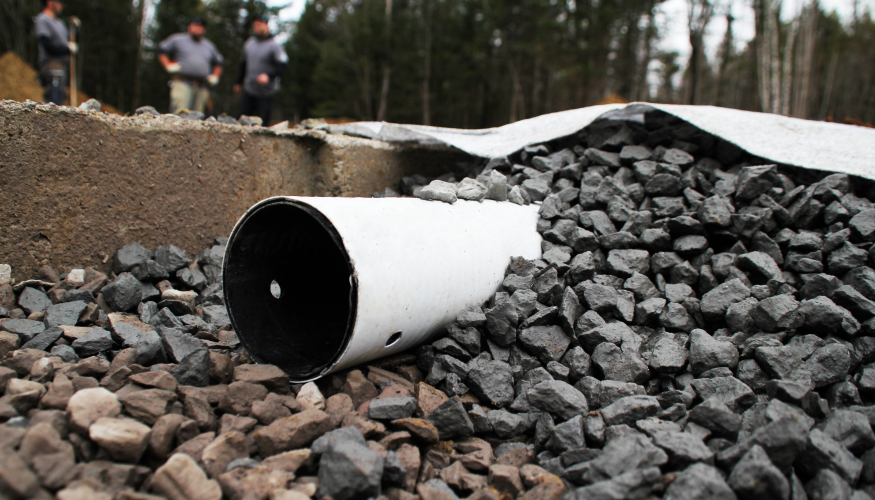

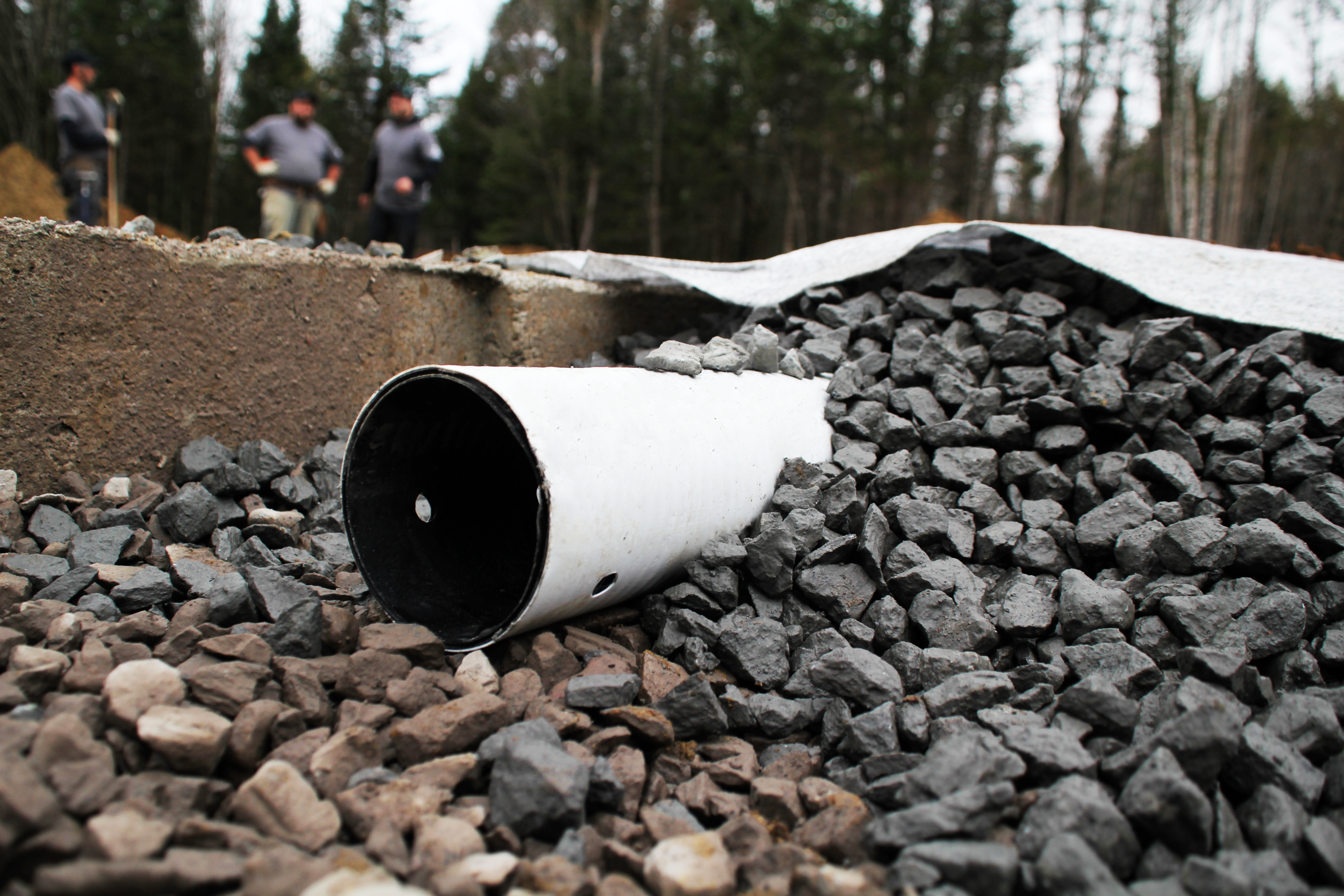

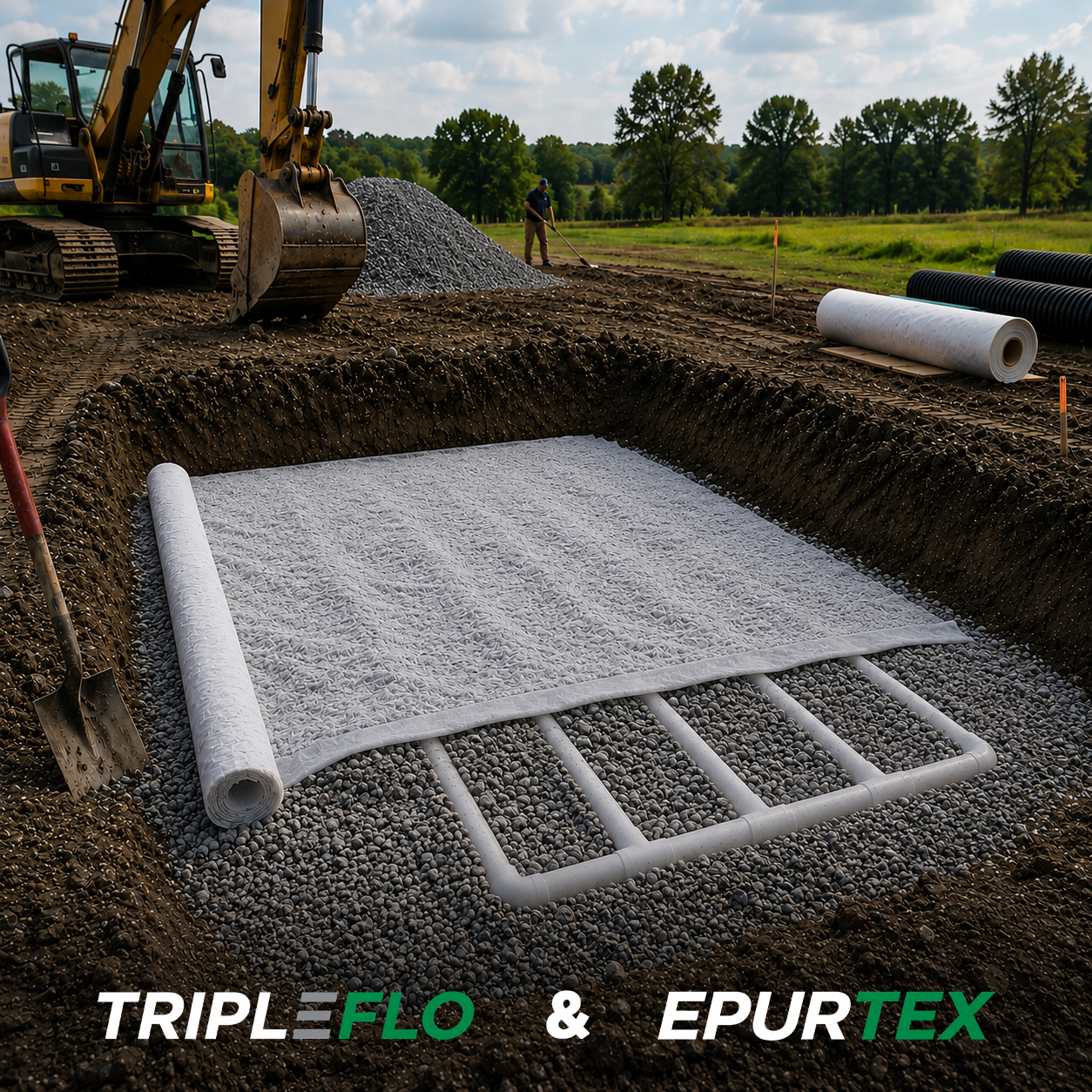

TripleFlo is ideal for various applications such as: Drainage trench, french drainage, foundation and basement drainage, drainage collector and outlet, turf, yard and landscape drainage, septic leachfields and more.
Integrated bell.

Compliant with ASTM F810

Made with over 50% recycled plastics

Technical documents Talk to an expert

Advantages and characteristics

TripleFlo is made from HDPE. The thermoplastic has excellent resistance to breaks, cracks, splits, and impacts in cold weater.
Extremely durable and effective, the TripleFlo phas a lifespan that can exceed 100 years
Manning value : 0.009
Pipe stifness greater than 30 psi (210 kPa)
Increased resistance to sunlight, heat and UV rays due to the white outer wall

3PO4X10-4.8 : Triple Wall Pipe 4” (100mm) Perf 4-8-10′ (3M) ASTM F810
3PO4X10-4.8C : Triple Wall Pipe 4” (100mm) Perf 4-8-10′ (3M) Bell ASTM F810
3PO4X10 : Triple Wall Pipe 4” (100mm) Non Perf 10′ (3M) ASTM F810
3PO4X10C : Triple Wall Pipe 4” (100mm) Non Perf 10′ (3M) Bell ASTM F810
*3PO4X10-4.6.8 : Triple Wall Pipe 4” (100mm) Perf 4-6-8 10′ (3M) ASTM F810
*3PO4X10-4.6.8C : Triple Wall Pipe 4” (100mm) Perf 4-6-8 10′ (3M) Bell ASTM F810
*3PO4X10-4.8.12 : Triple Wall Pipe 4” (100mm) Perf 4-8-12 10′ (3M) ASTM F810
*3PO4X10-4.8.12C : Triple Wall Pipe 4” (100mm) Perf 4-8-12 10′ (3M) Bell ASTM F810
