Flexible Configurations

• StormFilter offers a complete range of configurations that can be adapted to different flow rates, available ground space and project-specific hydraulic data.
• In certain circumstances, different control devices such as control valve or flow regulator, can be integrated into the system.

All-in-one Configuration

• Combines all the structures required in a traditional treatment system, by combining the functions of an inlet, a bypass structure and a junction unit into a single structure.
• This grouping saves money by reducing the number of structures to be installed, the footprint and excavation requirements.
• For certain models, a flow regulator and an additional overflow can be installed inside the unit.

Model shown: PD811 StormFilter

Manholes

• 4 models
• 1200 mm t 2400 mm (48 in to 96 in) in diameter
• Treatment flow rate up to 16.6 l/s

Model shown: MH60 StormFilter

Standard Vaults

• 9 models
• 2400 mm x 1800 mm (96 in x 72 i) à to 2400 mm x 7200 m (96 in x 288 in)
• Optional internal bypass
• Treatment flow rate up to 72.4 l/s

Model shown: V0811 StormFilter

Vault with an Integrated Bypass Structure

An advantageous configuration!

During rain events generating flow rates below the system’s treatment capacity, the operation of the vault with an integrated bypass structure remains the same as that of the standard vault.

When the flow rate exceeds the treatment capacity of the system, the excess flow is diverted to the outlet chamber over the weir wall. By segregating the treatment bay from the high velocity peak flows, the cartridges continue to operate normally which maintains performance and retains settles pollutants.

Model shown: PD0811 StormFilter

Unique Filter Cartridges

StormFilter replaceable filtering cartridges are available in three activation heights to meet the specific hydraulic needs of the project, such as water level and treatment flow rate

Activation Heights

• By providing a treatment capacity 50% higher than the medium cartridge, the large cartridge is ideal for reducing the number of cartridges required, and therefore the footprint of the structure, while meeting the same treatment performance.
• With a minimum hydraulic drop of 550 mm (21.7 in), the small cartridge is suitable for sites with shallow hydraulic profiles.

Replaceable and Self-Cleaning

• The configuration of the cartridge reduces the clogging of its filter media, ensuring the use of its entire contact surface and thus extending its lifespan.
• Replaceable filtering media cartridges that make maintenance easier and reduce operating costs.

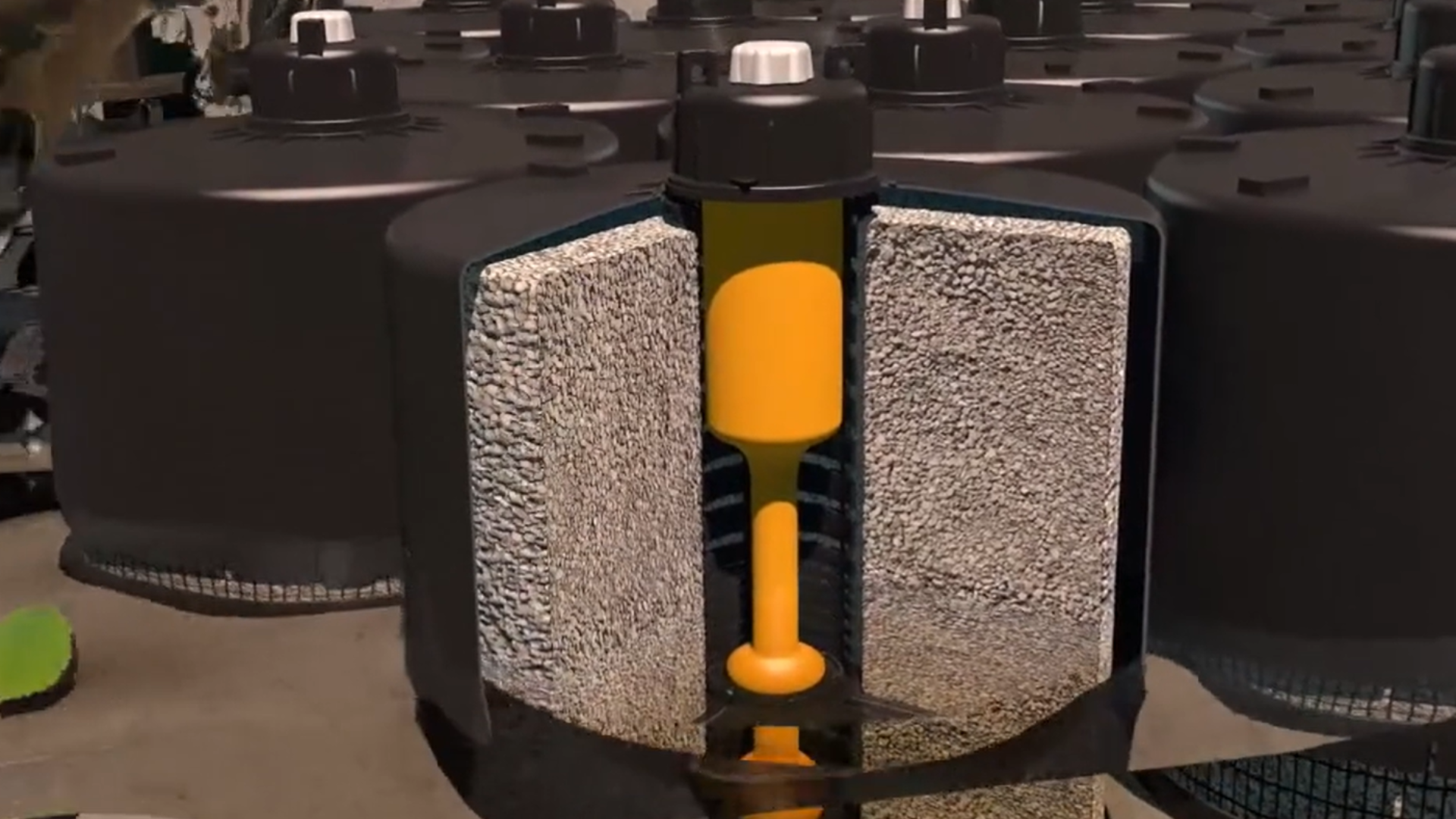

• Once the siphon is activated, stormwater is drawn radially through the large surface of the filtering media for effective treatment.

Different types of filtering media are available, targeting TSS, phosphorus, soluble metals and nutrients.

• PhosphoSorb^TM is a lightweight media built from a perlite base that removes total phosphorus (TP) by adsorbing dissolved-P and filtering particulate-P simultaneously.
• Available on request, ZPG^TM a proprietary blend of zeolite, perlite and granular activated carbon (GAC), enhances perlite* performance and targets organic compounds, soluble metals and other pollutants.

• Lightweight, handling the cartridges to be maintained does not require any integrated lifting equipment, making system maintenance easier and faster.
• The cartridges are pre-installed at the factory.
