Non-perforated rigid dual wall pipe, with smooth interior and corrugated exterior walls for roadway use
Provides a compression stiffness of 210 kPa or 320 kPa, depending on the selected diameter, up to 900 mm (36 in). Please refer to the data sheet, For diameters from 1050 mm (42 in) to 1500 mm (60 in).
Durable and resistant solution to de-icing salts.
The length of the pipes reduces installation time and the number of joints required, compared to traditional concrete pipes.

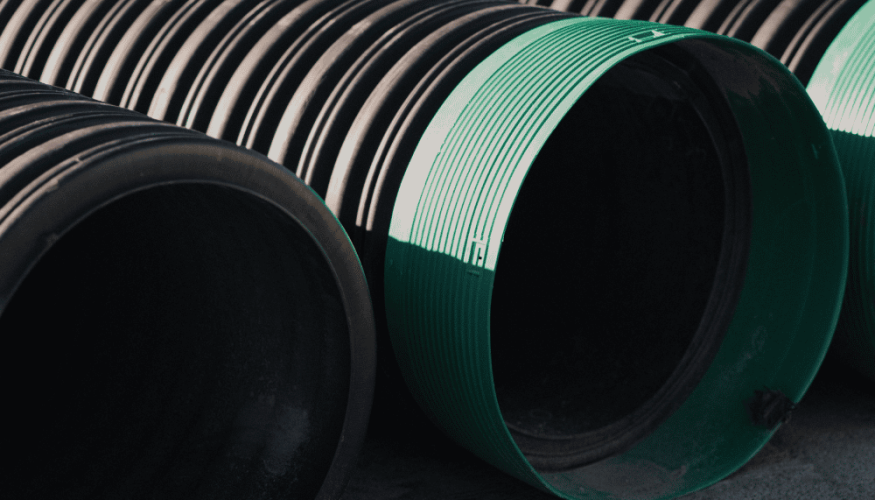

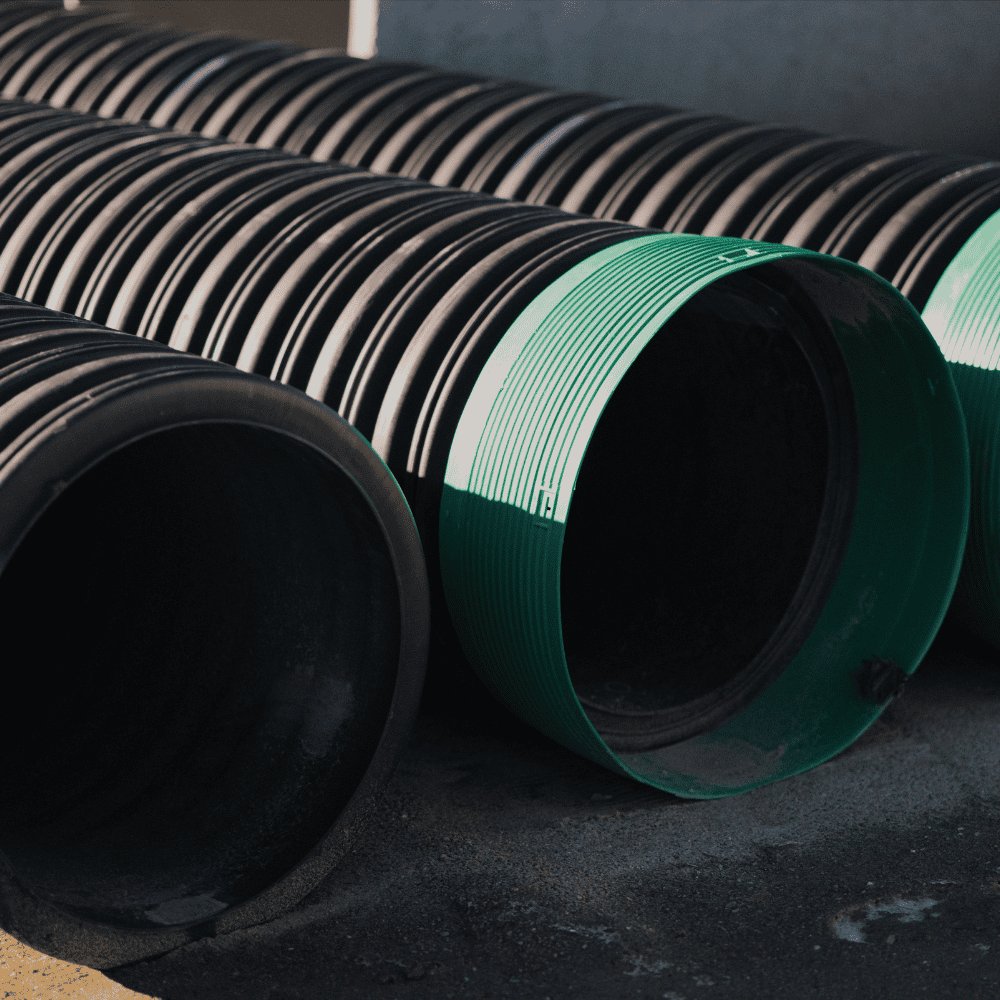

Used with a Bell with Integrated Gasket (BIG), exclusive to Soleno, the Watertight Non-Perforated Solflo Max pipe (R320) provides a perfect watertightness and complete prevention of sediment infiltration and conveyed water exfiltration.
In 4 m (13 ft) lengths, its use minimizes flats and facilitates work progress in deep and multiple trench installations.
Used with a bell with clips, the Soil Tight Non-Perforated Solflo Max pipe (R320 or R210) only prevents from sediments infiltration when the joint is surrounded by geotextile.
Fits perfectly with our full range of watertight and non-watertight proof fittings and accessories, designed to meet field requirements or comply with network requirements.
Product now accredited WELL MADE HERE
Meets the criteria of BNQ 3624-120, CSA B182.8, ASTM 2648, ASTM 2306 and AASHTO M294 standards.
Our non-perforated Solflo Max pipe, 210 kPa, was awarded EcoDesigned Product Attestation by the Council of sustainable industries (CSI).
This program created by the Council of sustainable industries (CID), Eco Entreprises Quebec (ÉEQ) and RECYC-QUEBEC aims at recognizing the eco-design approaches of an business in the development of packaging or products, as well as their environmental attributes.
How to choose the right pipe?
Several factors are taken into account when selecting the pipe to be used such as the hydraulic capacity (roughness coefficient, diameter and slope). For more information, see our technical data sheet or talk to your Soleno representative.
